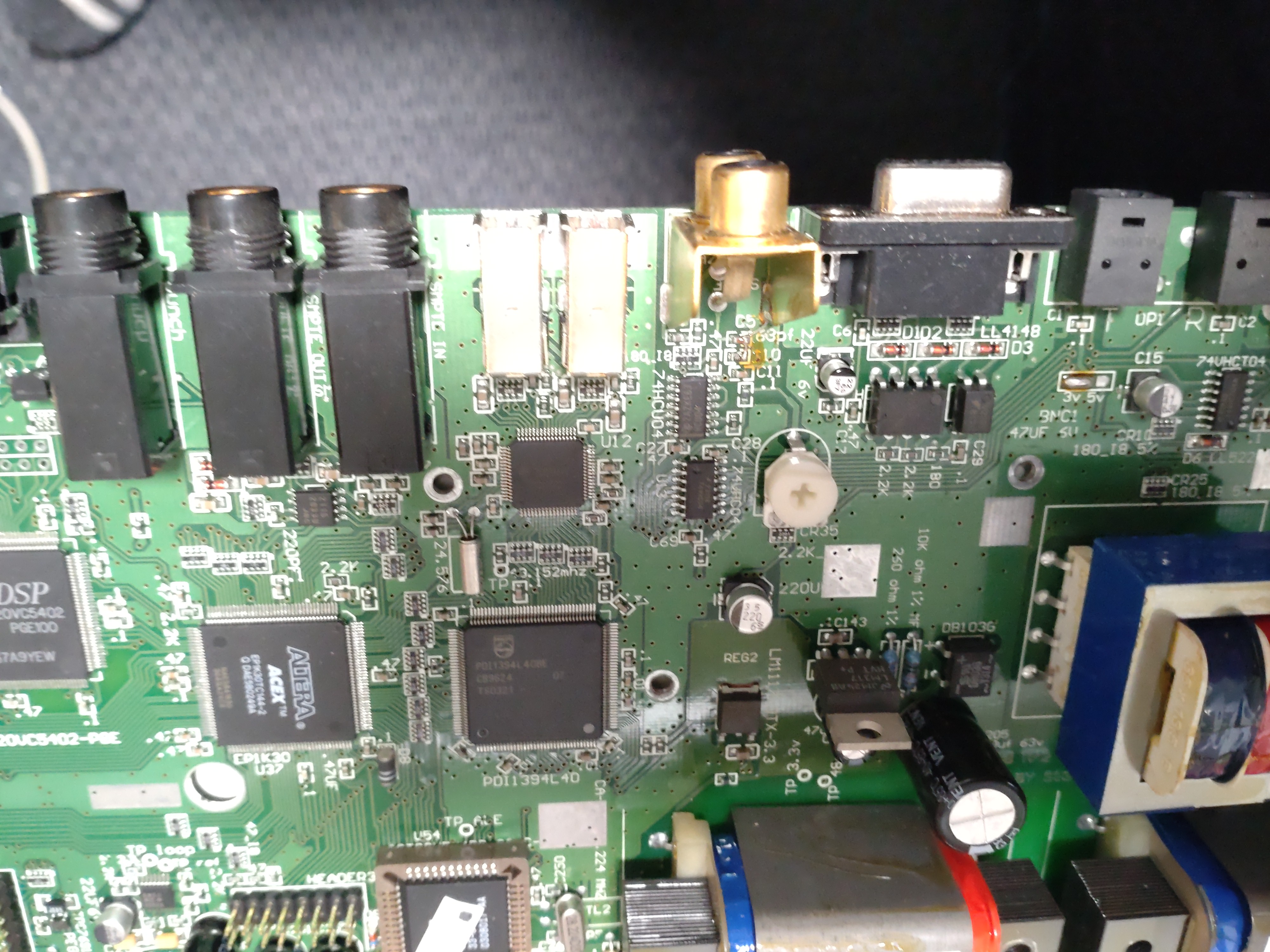

Can someone tell what is the function of the big white trimmer in 828mk2 and 3 (at least)
In Mk2 its CR35. As there is no service manual, any info would be appreciated.
Trimmer in 828mk2 & 3
Moderator: James Steele
Forum rules
Discussion related to installation, configuration and use of MOTU hardware such as MIDI interfaces, audio interfaces, etc. with Windows
Discussion related to installation, configuration and use of MOTU hardware such as MIDI interfaces, audio interfaces, etc. with Windows
-
mikehalloran
- Posts: 16273
- Joined: Sun Jan 25, 2009 5:08 pm
- Primary DAW OS: MacOS
- Location: Sillie Con Valley
Re: Trimmer in 828mk2 & 3
Picture?
DP 11.34; 828mkII FW, micro lite, M4, MTP/AV USB Firmware 2.0.1
2023 Mac Studio M2 8TB, 192GB RAM, OS Sequoia 15.4, USB4 8TB externals, Neumann MT48, M-Audio AIR 192|14, Mackie ProFxv3, Zoom F3 & UAC 232 32bit float recorder & interface; 2012 MBPs (x2) Catalina, Mojave
IK-NI-Izotope-PSP-Garritan-Antares, LogicPro X, Finale 27.4, Dorico 5, Notion 6, Overture 5, TwistedWave, DSP-Q 5, SmartScore64 NE Pro, Toast 20 Pro
2023 Mac Studio M2 8TB, 192GB RAM, OS Sequoia 15.4, USB4 8TB externals, Neumann MT48, M-Audio AIR 192|14, Mackie ProFxv3, Zoom F3 & UAC 232 32bit float recorder & interface; 2012 MBPs (x2) Catalina, Mojave
IK-NI-Izotope-PSP-Garritan-Antares, LogicPro X, Finale 27.4, Dorico 5, Notion 6, Overture 5, TwistedWave, DSP-Q 5, SmartScore64 NE Pro, Toast 20 Pro
-
NoFi Audio
- Posts: 29
- Joined: Mon Mar 25, 2024 11:10 am
- Primary DAW OS: Windows
- Location: Muskoka, Ontario, Canada
Re: Trimmer in 828mk2 & 3
That may have something to do with the voltage regulator nearby. The trimmer is labelled P1 POT 1K underneath. But, the center leg (on my 828 MKII) seems to trace back to that group of components by the SPDIF connectors, so if it's C17 than it might be adjusting the frequency or clocking related to that. It is kinda tough without Schems to figure out what its doing. My two guesses though.
